Op-amp DC Amplifier

This circuit shows a DC amplifier implemented with LM741 opamp.

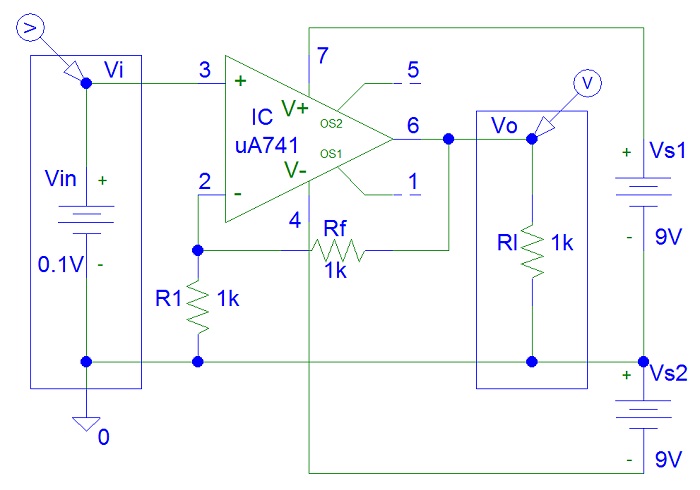

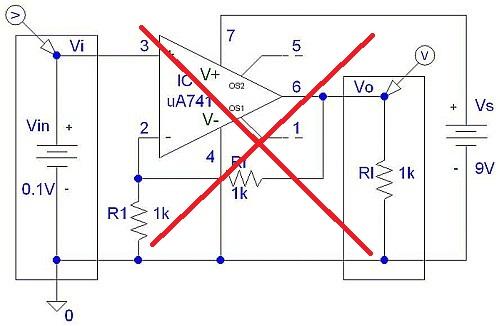

The problem not considered in this design is saturation voltage, which limits the maximum and minimum outputs. In this circuit the output would not be 0.2 V but equal to saturation voltage of LM741 opamp. The maximum output is also limited to power supply voltage (9V) minus the saturation voltage. Typical saturation voltage values are guaranteed to be less than 2 V. Usually those voltage are just below 2 V. The solution is use negative supply.

bad opamp dc amplifier.sch bad opamp dc amplifier.sch
Size : 3.77 Kb
Type : sch
opamp dc amplifier solution.sch opamp dc amplifier solution.sch
Size : 4.021 Kb
Type : sch
